Descriptions

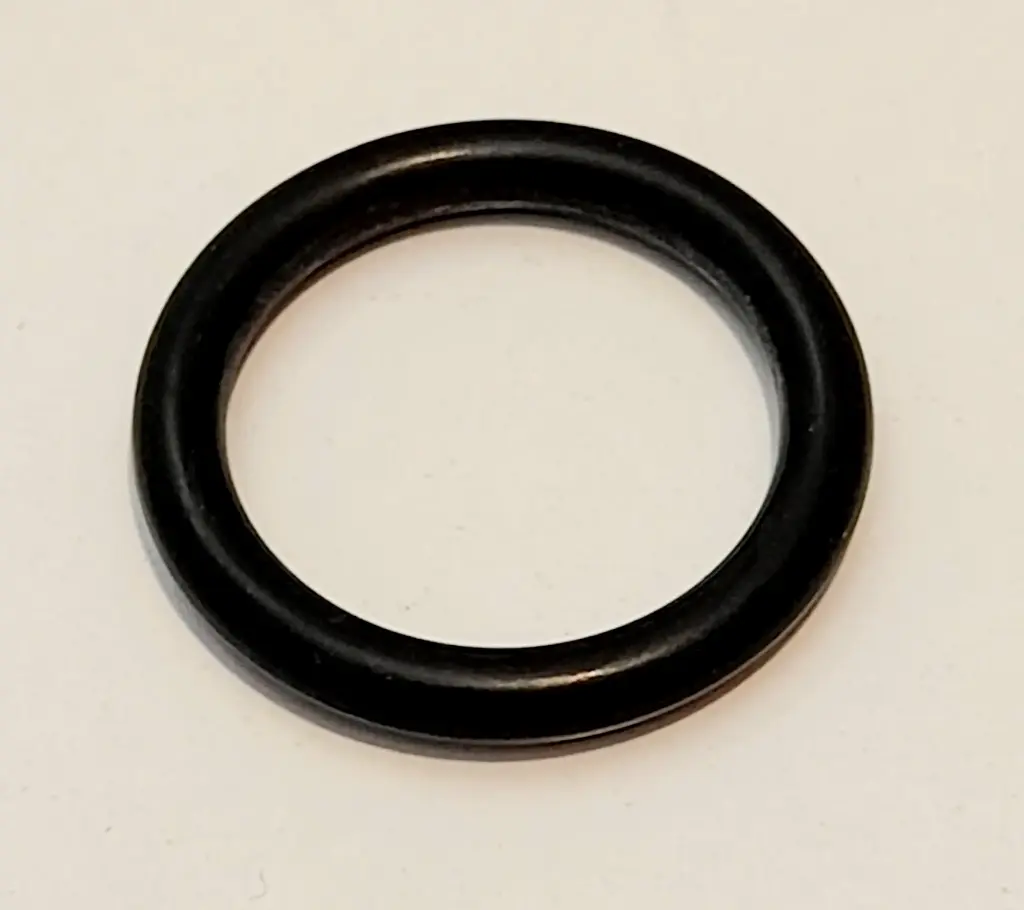

O-Rings are used in static sealing and some dynamic applications.
O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in Cat engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.
Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.
Attributes:
- Cross Section Diameter (in): 0.103
- Inside Diameter (in): 0.612
- SAE AS568 Dash Size: -114
- Material: HNBR - Hydrogenated Nitrile,HNBR (78),HNBR,Polytetrafluoroethylene (PTFE) Plastic,Nitrile / NBR / HNBR / XNBR Rubber
- Material Description: HNBR rubber is capable of service temperatures of -40 to 115C and is resistant to fuel, oils, lubricants and offers good abrasion and cut resistance.
- Notes: Dimensions and material descriptions provided for reference only.
- Polymer: HNBR (Hydrogenated nitrile)
- Applications: Automotive air conditioner seals; High temperature flex boot seals; High temperature power steering seals; Higher temperature hydraulic seals; Middle cylinder liner seals
- Not Compatible With: Aromatic and oxygenated gasolines; Automotive and aircraft brake fluids; Chlorinated hydrocarbons; Ethers; Ketones; Phosphate ester fluids
- Material Hardness: 78A
- Compatible With: Abrasion resistant; Diesel fuels; Diester lubricants; Ozone; Petroleum oils, greases; Refrigerant HFC - 134a (Non-Freon); Silicone fluids; Steam; Water base engine coolants
- Dash Size: 114
- Temperature (°F): -40° - 275°
- Seal/O-Ring Type: Standard
- Primary Sealing Material: Rubber
Compatible Models
PUMPER
SPS342 SPT342 SCT673
UNDERGROUND ART TRUCK
AD55 AE40 AD30 AE40 II AD45 AD40
GENERATOR
SR4
TRUCK ENGINE
3408B 3408 3406C 3406B C-15
POWER MODULE
PM3456
LOAD HAUL DUMP
R2900G R2900
REMAN ENGINE
3406E
MOTOR GRADER
120H 12M 2 140M 120M 160M
MARINE ENGINE
3408B 3412 3406B 3408 3056
STABILIZER MIXER
SM-350
EXCAVATOR
245B
GENERATOR SET
C32
WHEEL TRACTOR
631E 637E 621E
RECLAIMER MIXER
RM-350
SOIL COMPACTOR
825G
WHEEL DOZER
834B 824G
COLD PLANER
PR-1000C PR-1000 PR-450 PM-565
LANDFILL COMPACTOR
836
WHEEL LOADER
924G 980H 980G
ROAD RECLAIMER
RR-250
SOIL STABILIZER
SS-250
ENGINE - MACHINE
3408
GEN SET ENGINE
3406C 3406B 3412 3456 3408B 3408C 3408 3412C
ENGINE - INDUSTRIAL
3406B 3406C
INDUSTRIAL ENGINE
3412 3406C C15 3406 3408B 3408C
WHEEL SCRAPER
623F 623E 621E 657 657E 657B
QUARRY TRUCK
771D 771C
TRUCK
69D 775D 773D 769D 769C
TRACTOR
768C
BULLDOZER
824S
