Descriptions

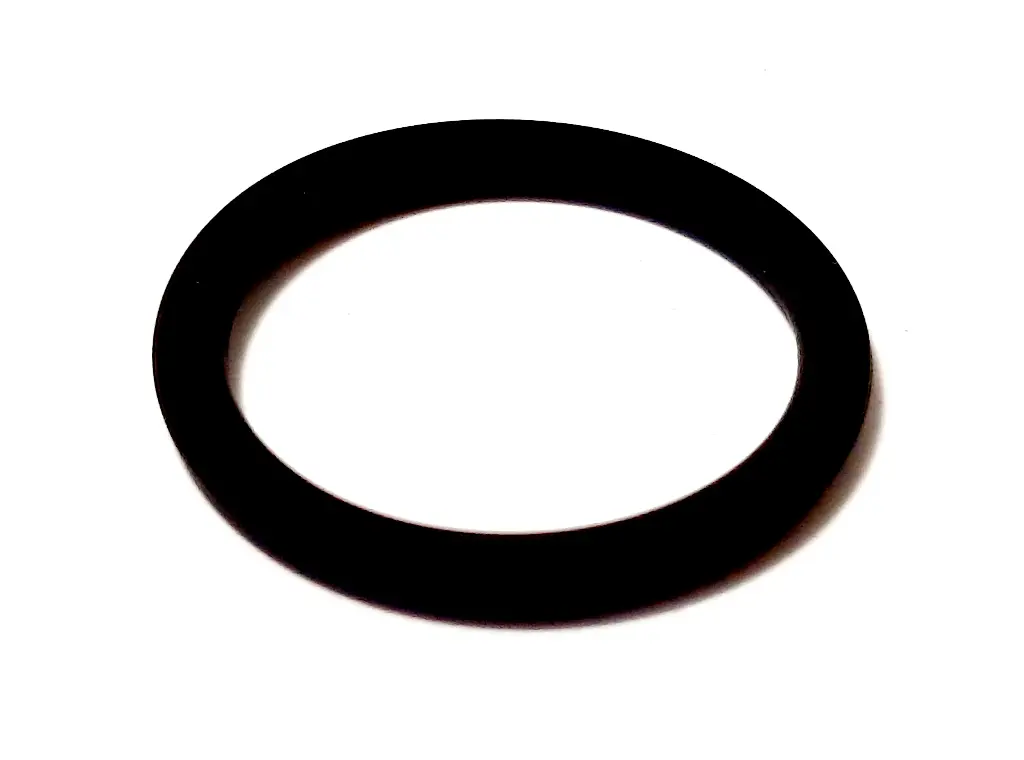

O-Rings are used in static sealing and some dynamic applications. O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in Cat engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set.
Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.
Attributes:
- Cross Section Diameter (in): 0.097
- Inside Diameter (in): 0.755
- SAE AS568 Dash Size: 0
- Material: FKM (75),FKM - Fluoroelastomer,FKM,Fluoroelastomer (FKM) Rubber,Polytetrafluoroethylene (PTFE) Plastic
- Material Description: FKM rubber is capable of service temperatures of -40 to 150C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber should not be used in applications that require resistance to water or coolant.
- Notes: Dimensions and material descriptions provided for reference only.
- Polymer: FKM (Fluorocarbon)
- Applications: High temperature applications requiring resistance to air, fuels, lubricants and hydraulic fluids
- Not Compatible With: Amines; Brake fluids; Engine Coolant; Fire Resistant Fluids; Ketones; Steam; Water
- Material Hardness: 75A
- Compatible With: Diester lubricants; Halogenated hydrocarbons (above 100 Deg. C); Highly resistant to compression set; Petroleum fluids; Phosphate ester fluids; Silicone fluids; Some acids
- Dash Size: 910
- Temperature (°F): -40 - 350
- Seal/O-Ring Type: Standard
- Primary Sealing Material: Rubber
Compatible Models
PUMPER
SPT343
UNDERGROUND ART TRUCK
AD22 AD55 AD30
GENERATOR
SR4 SR4B
TRUCK ENGINE
C7 C9 3406C 3406B C-15 3126 C13 C16
WHEEL TRACTOR-SCRAPER
631K 637K 657 651
LOAD HAUL DUMP
R2900G R1700G R2900
REMAN ENGINE
3406E
MOTOR GRADER
120M
GEN SET-MILITARY
3608
WHEEL SKIDDER
535C
TRACK-TYPE TRACTOR
D7R D5K LGP D6 D5 D4K LGP D9R D4K XL D5K XL D3K XL D5M D11R D7R II D6R D6M D7E LGP D3K LGP
TRACK FELLER BUNCHER
TK751 511 522 521 532
MARINE AUXILIARY
3608 3516C 3516B 3512C 3512B
MARINE ENGINE
3512C 3512 3508 3616 3612 C280-16 C280-12 3408B 3412 C280-6 C280-8 3408 3516C
EXCAVATOR
M325D MH 325C L 322C 330C LN 330C L 330C M325D L MH 330D L 325C
VIBRATORY COMPACTOR
CP-533C CS-583C CS-531C CS-573C CS-533C CS-563C CP-563C
WHEEL TRACTOR
631K 637K
GENERATOR SET
G3516H G3520H C32 3516C 3516B 3516E
VEHICULAR ENGINE
3512
LOCOMOTIVE ENGINE
3516C 3516B 3512C
PETROLEUM ENGINE
2016 3516C 3512E 3512C
BACKHOE LOADER
430D 442E 426C 438D 430F 436C 422F 434E 434F 422E 416F 420D 432E 432F 444E 416C 428D 416D 428E 416B 420F
PETROLEUM GEN SET
3512B 3512C TELEHANDLER TH560B TH330B TH220B TH360B TH580B TH350B TH340B TH460B
WHEEL LOADER
980 XE 982XE 966 972 966XE 980 982 980XE 980H 972XE 982 XE
CHALLENGER
75C
GEN SET ENGINE
3412 3608 3606 3412C 3508 3512B 3516
ENGINE - MACHINE
C4.4 3406B 3408 3176C
WHEELED EXCAVATOR
M325C MH M322D M318D M315D M313D M318D MH
ENGINE - INDUSTRIAL
3512B 3406B
INDUSTRIAL ENGINE
3516B 3412 C18 3406C 3408B 3508B 3512C 3508
TRUCK
773D 797F
WHEEL SCRAPER
637K
GAS ENGINE
CG137-08 G3608 G3512E G3512J G3520B G3516
