Descriptions

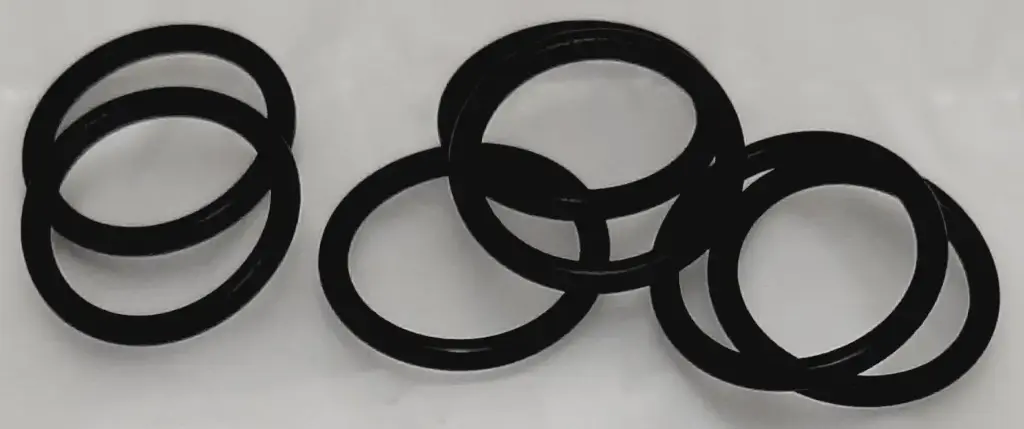

O-Rings are used in static sealing and some dynamic applications.O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.
Attributes:
- Cross Section Diameter (in): 0.097
- Inside Diameter (in): 0.755
- SAE AS568 Dash Size: -910
- Material: NBR - Nitrile,NBR (90),Nitrile (NBR),Polytetrafluoroethylene (PTFE) Plastic,Nitrile / NBR / HNBR / XNBR Rubber
- Material Description: Nitrile (NBR) rubber is capable of service temperatures of -40 to 100C and is resistant to fuel oils, gasoline, ultra low sulfur diesel fuel and lubricants. Nitrile rubber is not recommended for applications that require resistance to bio-diesel or coolant.
- Notes: Dimensions and material descriptions provided for reference only.
- Polymer: NBR (Nitrile butadiene)
- Applications: Ambient temperature fuel handling; High and low pressure LPG service; Hydraulic fluids (to 10,335 kPa/1,500 psi); Power steering seals; Radiator thermostat seals
- Not Compatible With: Automotive and aircraft brake fluids; High levels of ozone; Ketones; Phosphate ester fluids; Strong acids; UV light
- Material Hardness: 90A
- Compatible With: Abrasion resistant; Alpha-Olefin base synthetic lubricants; Ethylene Glycol; Hydrocarbon fuels; Petroleum base lubricants; Silicone oils and greases; Water, water base engine coolants; ORFS, STORS seals
- Dash Size: 910
- Temperature (°F): -40 - 212
- Fitting Size (in): 7/8 – 14
- O-Ring Type: Straight Thread O-ring (STOR)
Compatible Models
GENERATOR
SR4B SR4 SR4BHV
TRUCK ENGINE
C7 C9 3408B 1673C 3406C 3406B C15 3306B 3126B 3408 3406 3306 3208 3116
INTEGRATED TOOLCARRIER
IT12B IT14G IT28G IT28F IT28B IT18B
WHEEL SKIDDER
525 518 528
MINI HYD EXCAVATOR
301.6C 301.8C
TRACK FELLER BUNCHER
1190 1390 TK751 1190T 1090
HARVESTER HEAD
HH45 HH55 HH65
EXCAVATOR
320-A L 320-A N 312C 312-A 321B 312C L 350-A L 320 GX 350 L M325D MH 320N 245B 320 L M325D L MH 316 GC 323F SA 225 313 GC 235 320-A 215 336 375-A 245 M312 374 M315 M318
MULTI TERRAIN LOADER
257B 247B
COMPACT TRACK LOADER
259D
WHEEL TRACTOR
651B 631E 631C 641B 613 627 621 641 651 657 633C 657B 621E 627B
HYDRAULIC CONTROL
193B 48 192 193 191 183 184 181 182 165 173B 163 161 143 183B 153 151 141 140
VEHICULAR ENGINE
3516 3512
TRACK LOADER
973 983 931 943 941 953 951C 951B 977H 953C 941B 977K 955H 955K 955L
PETROLEUM ENGINE
C15 C9 3512B
SOIL COMPACTOR
815 825B
BACKHOE LOADER
442D 430D 430F 438C 426B 426C 438D 438B 416 426 424D 428 436C 424B 446B 420D 432D 420F 438 436 416C 428D 416D 428B 428C 416B
WHEEL DOZER
834 824B 814
LANDFILL COMPACTOR
836 816 826B
MULCHING HEAD
HM415B
COMPACT WHEEL LOADER
910F 910E 908 914G
WHEEL LOADER
960F 972G 972H 950G 950F 962G G926 988B G916 966D 966C 966E 966H 966G 930H 930R 930T 936E 924H 924G 928F 938G 938F 926E 928G 980 928HZ 988 992 916 920 926 930 936 950 982 XE 980 XE 924GZ 924HZ 980B 992B 980C 980F 980H 970F 950F II
TELEHANDLER
RT80 TH337C TH82 TH83 TH336C RT100 TH350B TH255C TH103 TH407C TH62 TH63 TH414C TH406C TH514C TH417C
SOIL STABILIZER
SS-250
ARTICULATED TRUCK
D35HP D250B D300E II D400
GRAPPLE-LOG LOADING
GLL55 GLL52 GLL60
WHEELED EXCAVATOR
M318C M322C M318C MH M315C M316C M313C
PNEUMATIC COMPACTOR
PS-300B PF-300B
ENGINE - INDUSTRIAL
3406B 3406C
INDUSTRIAL ENGINE
3456 3304 3306 3412 3406 3512 3516 C-16 3508 D399 D379 3516B 3406C D348 D349 D346 3512C D333C D353C D353E D353D C15 D330C D379B
WHEEL SCRAPER
666B 631C 631E 631B 621E 633E 633D 623F 623B 623E 613C 639D 627B 615C 615 627 666 637
QUARRY TRUCK
775B 771D 771C
ASPHALT SCREED
AS3251C 10 FT AS2252C 8 FT AS4252C AS2302C 10-20B AS2302 AS3301C
RAKE-POWER BOX
PR190 PR172 PR184
TRACTOR
772B 776 768C
GAS ENGINE
G398 G399 G379A G3306 G379 G3512B G3612 G3608 G3508B G3406 G3508
BULLDOZER
824S 834U 834S 7SU 7S LGP 8S 10C 5A 5S 6A 6S 10S 7S 10U 8A 3S 3P
PUMPER
SCT673 CPT372 SPT343 SPT342
UNDERGROUND ART TRUCK
AE40 AE40 II AD45B AD55 AD30 AD45 AD40
POWER MODULE
3516C
FELLING HEAD
HF222 HF221 HF202 HF201 HF181
LOAD HAUL DUMP
R1600G R1700G R1700 II R2900G R1300 R1600 R2900
REMAN ENGINE
3516B
MOTOR GRADER
120H 120G 16 140G 130G 140 14E 24M 120 160G 12F
WINCH
528 57 55 58
BACKHOE
D4 BH30 BH27 BH30W
TRACK-TYPE TRACTOR
D10 D6R II D3B D4G D4H D4E D5B D5H D6C D6D D6E D6H D3 D6 D5 D4E SR D7G2 D7F D7G D8K D8L D8H D9G D9R D6G2 XL
ASPHALT PAVER
AP-800 AP-800B
MARINE ENGINE
3208 3304 3412 3408 3406 3516 3512 3508 3616 D379A 3612 D379B D399 3408B 3406B D346 D348 D398A D398B C280-16 C280-12 3304B
HAMMER
H45S H50 H45 H50S
MARINE AUXILIARY
C32 3512
PIPELAYER
561D 561C 572F 571F
STABILIZER MIXER
SM-350
VIBRATORY COMPACTOR
CS-563 CB-614 CB-564D CP-563 CB-434B CB-434 CB-14
RIPPER SCARIFIER
16G
GENERATOR SET
G3520C
RECLAIMER MIXER
RM-350
COLD PLANER
PR-1000C PR-1000 PM-565
COMBAT VEHICLE ENGINE
C13
ROAD RECLAIMER
RR-250
ENGINE - MACHINE
3116 3306 3208 C4.4 3406B
CHALLENGER
55 75C 85C 35 45 70C
GEN SET ENGINE
3406C 3406E 3406B 3408B 3408C 3606 3304B G3508 3306 3304 3412 3208 3412C 3508 3616 3408 3512 3516
ROTARY/TRACK DRILLS
MD6540 MD6640
RIPPER
977 951 955 6 5 4 10
SKID STEER LOADER
226B 216B 236 248 246 252B 216 242B 228 226 232B 236B
BATTERY CHARGER
MEC500
WHEEL FELLER BUNCHER
533
TRUCK
794 AC 793F OEM 775D 769B 769D 769C 69D 773D 773B 769 773
SNOW BLOWER
SR318 SR18 SR121 SR117 SR118
ACCESS PLATFORM
THP24S II
TRACK-TYPE LOADER
977K
