Descriptions

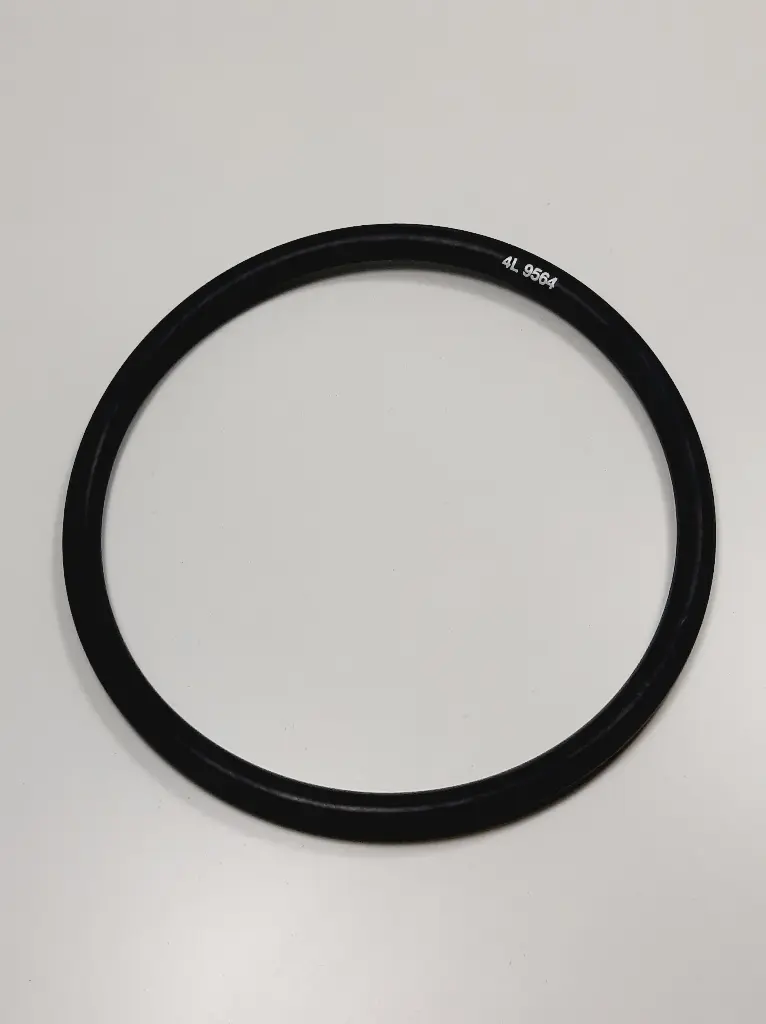

O-Rings are used in static sealing and some dynamic applications. O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation. Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.
Attributes:
- Cross Section Diameter (in): 0.21
- Inside Diameter (in): 3.225
- SAE AS568 Dash Size: -339
- Material: NBR - Nitrile,NBR (75),Nitrile (NBR),Nitrile / NBR / HNBR / XNBR Rubber
- Material Description: Nitrile (NBR) rubber is capable of service temperatures of -40 to 100C and is resistant to fuel oils, gasoline, ultra low sulfur diesel fuel and lubricants. Nitrile rubber is not recommended for applications that require resistance to bio-diesel or coolant.
- Notes: Dimensions and material descriptions provided for reference only.
- Polymer: NBR (Nitrile butadiene)
- Material Hardness: 75A
- Dash Size: 339
- Seal/O-Ring Type: Standard
- Primary Sealing Material: Rubber
Compatible Models
GENERATOR
SR4
TRUCK ENGINE
3306 3208 3116 3306C 3306B
INTEGRATED TOOLCARRIER
IT18B IT12B IT28F IT28B
LOAD HAUL DUMP
R1600G R1600 R1700G R1700 II
MOTOR GRADER
120G 120B 140B 140G 130G 14G 12G 160G
WINCH
528 55
ROTARY CUTTER
RC20
TRACK SKIDDER
D5HTSK II
TRACK-TYPE TRACTOR
D10 D4H D4D D4E D5B D5H D6C D6D D6E D6H D7G D7H D5 D4E SR
WHEEL SKIDDER
518 528
MARINE ENGINE
D353E D353C D353D D379A D379B D399 D330C D346 D348 D398A D398B D333C 3304 3306
PIPELAYER
561D 561C 572G 571G
EXCAVATOR
320-A L 320-A N 350-A L 350 L 325C 225 M325D MH 235 320-A 215 320N 320 L M325D L MH
VIBRATORY COMPACTOR
CS-563 CP-563 CB-434
GENERATOR SET
3512B
WHEEL TRACTOR
621 641 651 657 627B
HYDRAULIC CONTROL
163 143 153 141 140
VEHICULAR ENGINE
D346 D348
TRACK LOADER
973 943 941 953 951C 951B 941B 955K 955L
SOIL COMPACTOR
815
WHEEL DOZER
814
LANDFILL COMPACTOR
816
COMPACT WHEEL LOADER
910 910F 910E
WHEEL LOADER
960F 972G 950B 950E 950G 950F 962G G926 916 920 G916 926 930 936 966D 966C 966F 966E 966G 950 930R 930T 966F II 950B/950E 990K 936E 928F 938G 926E 970F
TELEHANDLER
RT80 RT100
ENGINE - MACHINE
3116 3306 3204 3408
CHALLENGER
70C 65 65C 65B 65D
GEN SET ENGINE
3406C 3406B 3408B 3408C 3304B 3304 3412 3412C 3408
ARTICULATED TRUCK
D30C D30D D35C D300B D250B D25D D25C D350C D300E II
RIPPER
977 951 955 10 6 5 4
ENGINE - INDUSTRIAL
3406B
INDUSTRIAL ENGINE
D398B 3408B 3304 3306 3412 D333C D398 D399 D353C D353E D353D D330C D379 D379B
WHEEL SCRAPER
621E 657E 637D 639D 627B 615C
TRUCK
785 789 785G 797F 793F OEM 777
GAS ENGINE
G3306
TRACTOR
776
BULLDOZER
7SU 7S LGP 4S 10C 5A 5S 6A 6S 10S 7S 10U 4A
TRACK-TYPE LOADER
977K
