Descriptions

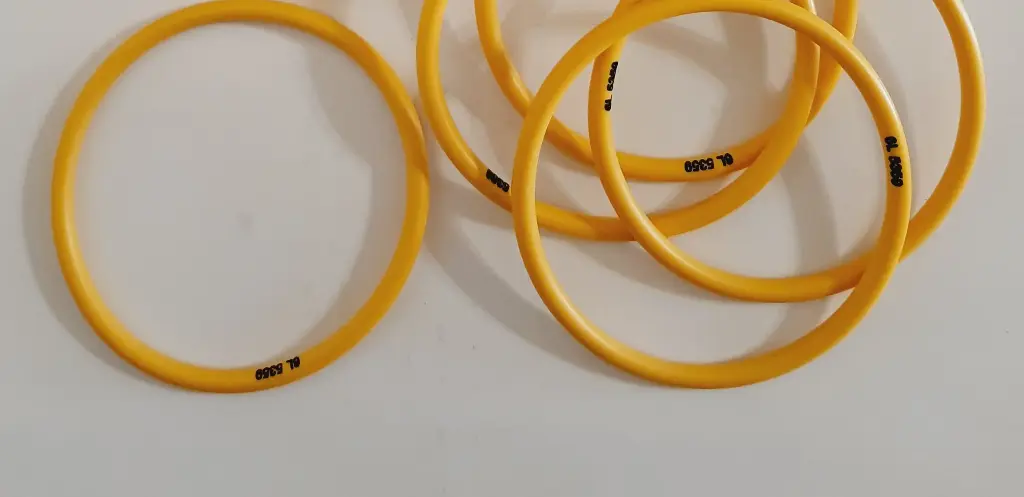

O-Rings are used in static sealing and some dynamic applications. O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.
Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.
Attributes:
- Cross Section Diameter (in): 0.21
- Inside Diameter (in): 3.225
- SAE AS568 Dash Size: -339
- Material: Silicone (70),VMQ - Silicone,Silicone (VMQ),Silicone / MQ / VMQ / PMQ Rubber
- Material Description: Silicone (VMQ) rubber is capable of service temperatures of -55 to 150C and is resistant air. Silicone rubber should not be used in applications that require resistance to fuel, oil and coolants.
- Notes: Dimensions and material descriptions provided for reference only.
- Polymer: VMQ (Silicone rubber)
- Applications: Electrical system seals; High temperature air seals; High temperature static grease seals
- Not Compatible With: Acetone; Aromatic hydrocarbons; EP oil; Fuel oil; Gasoline; Ketones; Low aniline point oils; Petroleum oils; Steam & hot water
- Material Hardness: 70A
- Compatible With: Air; Diacetone alcohol; Ethylene glycol; Extreme high/low temperatures; High aniline point oil; Iso-butyl alcohol; Ozone & UV light; Polyglycol
- Dash Size: 339
- Temperature (°F): -50 - 300
- Seal/O-Ring Type: Standard
- Primary Sealing Material: Rubber
Compatible Models
WHEEL TRACTOR
627 627B
TRUCK ENGINE
1673C 3306
HYDRAULIC CONTROL
173B 163 153
TRACK LOADER
941B 977K 951C 951B 955K 955L 941
SOIL COMPACTOR
815
WHEEL DOZER
814
LANDFILL COMPACTOR
816
MOTOR GRADER
12G 120B 120 140G 12F 130G 140 14G 14E
WHEEL LOADER
920 980B 930 966D 966C 966E 950
WHEEL SKIDDER
518
TRACK-TYPE TRACTOR
D7F D7G D7H D5 D8T D8N D4D D5R2 D4E D5B D5R XL D5M D7R II D5R LGP D6N LGP D6C D6D D6N XL D6M D6N D6R II D6H
RIPPER
7 6
MARINE ENGINE
D333C 3304 3306 D330C
PIPELAYER
PL87 583T 572F 571F 561M 572R II 561C
INDUSTRIAL ENGINE
3304 3306 D353C D353E D353D D333C D330C
WHEEL SCRAPER
627 627B
EXCAVATOR
235
BULLDOZER
7SU 6A 6S 7S 7S LGP
TRACK-TYPE LOADER
977K
