Descriptions

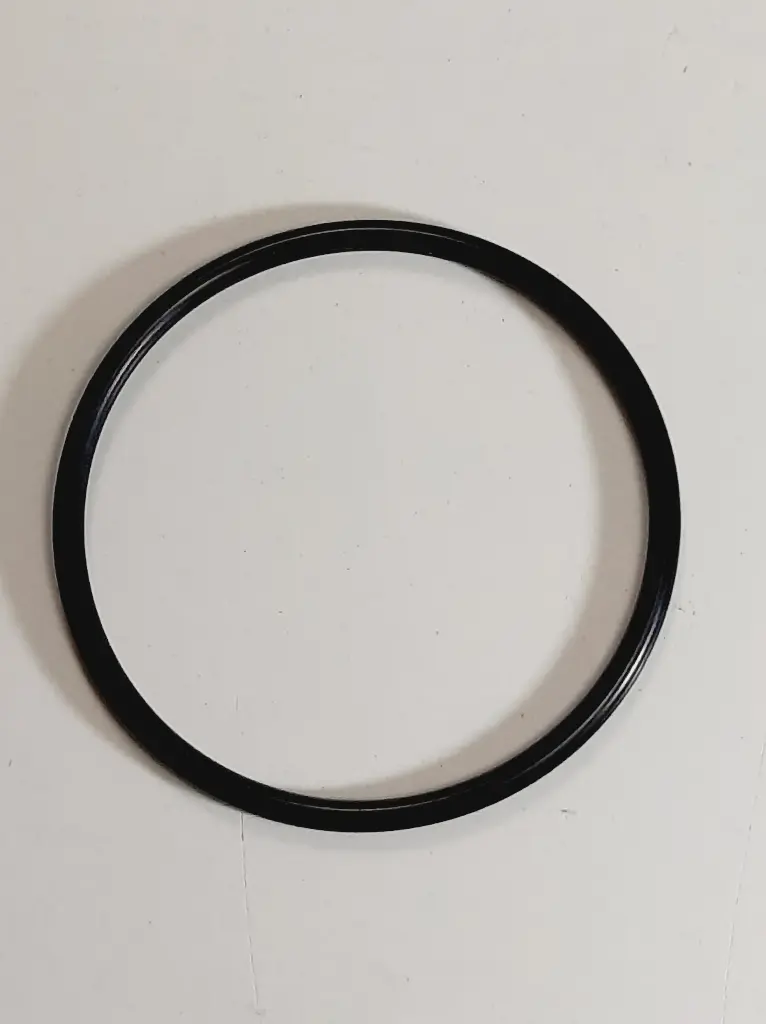

O-Rings are used in static sealing and some dynamic applications. O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.
Attributes:
- Cross Section Diameter (in): 0.07
- Inside Diameter (in): 1.239
- SAE AS568 Dash Size: -26
- Material: NBR - Nitrile,NBR (75),Nitrile (NBR),Nitrile / NBR / HNBR / XNBR Rubber
- Material Description: Nitrile (NBR) rubber is capable of service temperatures of -40 to 100C and is resistant to fuel oils, gasoline, ultra low sulfur diesel fuel and lubricants. Nitrile rubber is not recommended for applications that require resistance to bio-diesel or coolant.
- Notes: Dimensions and material descriptions provided for reference only.
- Polymer: NBR (Nitrile butadiene)
- Material Hardness: 75A
- Dash Size: 026
- Seal/O-Ring Type: Standard
- Primary Sealing Material: Rubber
Compatible Models
UNDERGROUND ART TRUCK
AE40 AD30 AD40
INTEGRATED TOOLCARRIER
IT28G IT28F
LOAD HAUL DUMP
R1700 II R1600G R1600 R2900
BACKHOE LOADER
430D 426B 438C 426C 438D 438B 416 426 424D 436C 424B 428 438 436 446B 420D 428D 416C 416D 428B 428C 416B
OFF HIGHWAY TRUCK
777G 798 AC
MOTOR GRADER
140B
LANDFILL COMPACTOR
836
WHEEL LOADER
980 XE 928G 972G 950G II 928HZ 950G 962G 972G II 988B 992D 980H 980G 980K 928F 938G 938F 966F 966G 966G II 982 XE FORWARDER 574
TRACK-TYPE TRACTOR
D9G D4H D5N D5H D6N
CHALLENGER
65C 65D 55 70C 75C 85C 35 45
MINI HYD EXCAVATOR
307B
ARTICULATED TRUCK
D400E D350E D300E II
MARINE ENGINE
D353E D353C D353D D379A D379B D399
INDUSTRIAL ENGINE
D353C D353E D353D D379 D379B
ASPHALT SCREED
10-20B
WHEEL SCRAPER
615C
TRUCK
793F OEM 775E 795F XQ 795F AC 777B 777G 69D 773E 797F 777 773G OEM 769C 773B
QUARRY TRUCK
771C 775B TRACTOR 776 776B 772B 768C
EXCAVATOR
225 312C 235 319C 318C 323D S 323D L 215 323D LN 323D2 L 315C
BULLDOZER
834U 834S
