Descriptions

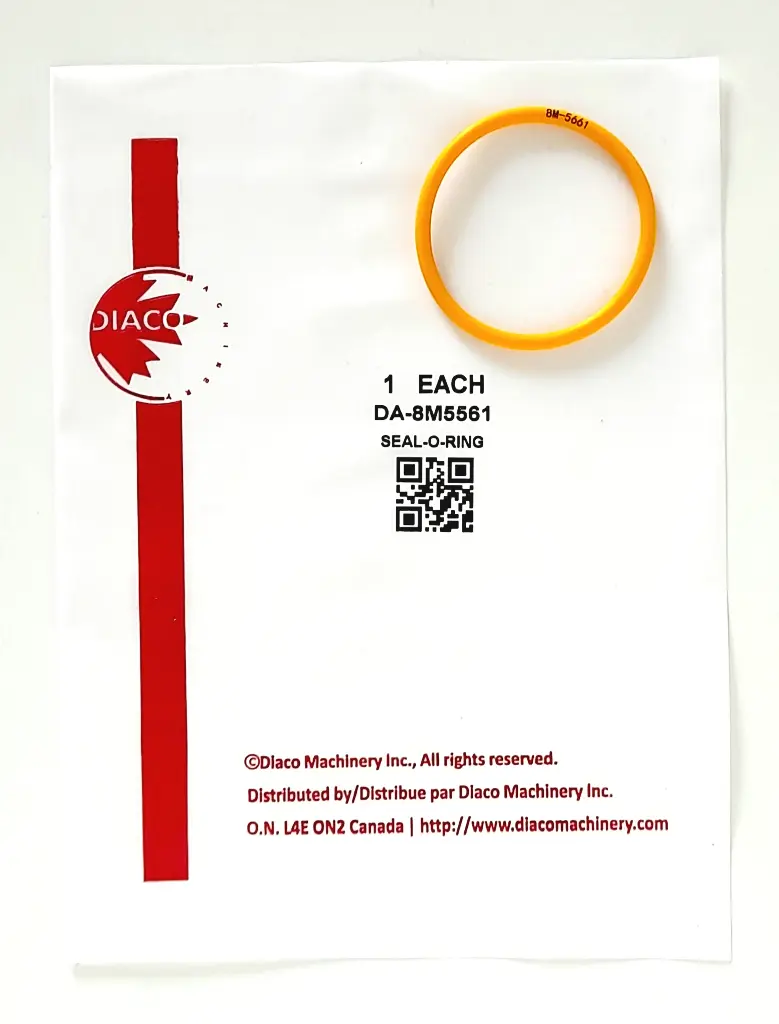

O-Rings are used in static sealing and some dynamic applications. O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.
Attributes:
- Cross Section Diameter (in): 0.139
- Inside Diameter (in): 1.859
- SAE AS568 Dash Size: -225
- Material: VMQ - Silicone,Silicone (70),Silicone (VMQ),Silicone / MQ / VMQ / PMQ Rubber
- Material Description: Silicone (VMQ) rubber is capable of service temperatures of -55 to 150C and is resistant air. Silicone rubber should not be used in applications that require resistance to fuel, oil and coolants.
- Notes: Dimensions and material descriptions provided for reference only.
- Polymer: VMQ (Silicone rubber)
- Applications: Electrical system seals; High temperature air seals; High temperature static grease seals
- Not Compatible With: Acetone; Aromatic hydrocarbons; EP oil; Fuel oil; Gasoline; Ketones; Low aniline point oils; Petroleum oils; Steam & hot water
- Material Hardness: 70A
- Compatible With: Air; Diacetone alcohol; Ethylene glycol; Extreme high/low temperatures; High aniline point oil; Iso-butyl alcohol; Ozone & UV light; Polyglycol
- Dash Size: 225
- Temperature (°F): -50 - 300
- Seal/O-Ring Type: Standard
Compatible Models
UNDERGROUND ART TRUCK
AD30
TRUCK ENGINE
1140 1150 3208 1145 1160 3408B 1693 3408
MOTOR GRADER
16
TRACK-TYPE TRACTOR
D7F D7G D7H D8K D8L D8H D9G D10 D9R D6G2 XL D6R II D4E D7R II D6C D6D D6H
MARINE ENGINE
3208 D343
PIPELAYER
583K 594
EXCAVATOR
225
VIBRATORY COMPACTOR
CB-614
WHEEL TRACTOR
651B 623G 623F 633C 657B 621E 621F 613 621G 621S 627 621 623 627B 627F 631E 631C 631G 641 637E 651 641B 657
HYDRAULIC CONTROL
183B
VEHICULAR ENGINE
D348
TRACK LOADER
983 955K 955L
SOIL COMPACTOR
825B
COLD PLANER
PR-1000C PR-1000
WHEEL DOZER
834 824B
LANDFILL COMPACTOR
826B
WHEEL LOADER
966F II 980 988 992 988B 980B 992B 980C 980F 980H 980G 966F 970F 950 950F II
ENGINE - MACHINE
3208
GEN SET ENGINE
3145 3208 3160 3150
ARTICULATED TRUCK
D25D D30D
RIPPER
8D 10
INDUSTRIAL ENGINE
D343
WHEEL SCRAPER
627 637E 637G 637D 666 666B 639D 627B 615C 621E 657 657E 657B
QUARRY TRUCK
771D 771C
TRUCK
789 775D 793B 69D 769 773 777 769B 769D 769C 773B
GAS ENGINE
G343
TRACTOR
776 768B
BULLDOZER
10C 7SU 10S 7S 10U 8A 7S LGP 8S 4A
