Descriptions

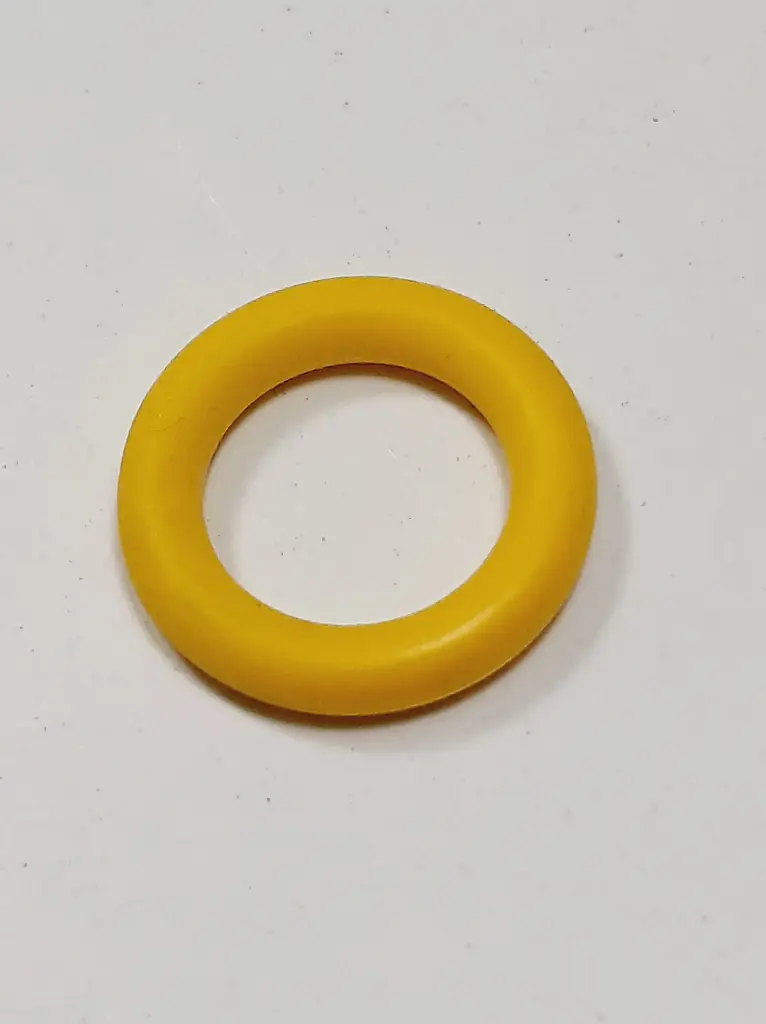

O-Rings are used in static sealing and some dynamic applications. O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.
Attributes:
- Cross Section Diameter (in): 0.103
- Inside Diameter (in): 0.362
- SAE AS568 Dash Size: -110
- Material: Silicone (70),VMQ - Silicone,Silicone (VMQ),Silicone / MQ / VMQ / PMQ Rubber
- Material Description: Silicone (VMQ) rubber is capable of service temperatures of -55 to 150C and is resistant air. Silicone rubber should not be used in applications that require resistance to fuel, oil and coolants.
- Notes: Dimensions and material descriptions provided for reference only.
- Polymer: VMQ (Silicone rubber)
- Applications: Electrical system seals; High temperature air seals; High temperature static grease seals
- Not Compatible With: Acetone; Aromatic hydrocarbons; EP oil; Fuel oil; Gasoline; Ketones; Low aniline point oils; Petroleum oils; Steam & hot water
- Material Hardness: 70A
- Compatible With: Air; Diacetone alcohol; Ethylene glycol; Extreme high/low temperatures; High aniline point oil; Iso-butyl alcohol; Ozone & UV light; Polyglycol
- Dash Size: 110
- Temperature (°F): -50 - 300
- Seal/O-Ring Type: Standard
Compatible Models
GENERATOR
SR4
UNDERGROUND ART TRUCK
AE40 AD55 AD30 AE40 II AD45 AD40
TRUCK ENGINE
3408B 3408 3406 1140 1150 3208 1145 1160 3406B
LOAD HAUL DUMP
R1700G R2900 R1700 II R2900G
OFF HIGHWAY TRUCK
777G
WINCH
55 54
MOTOR GRADER
16
WHEEL SKIDDER
518 528
TRACK-TYPE TRACTOR
D6H XL D6H XR D10 D7R LGP D6R II D4H D4E D5B D5H D5E D6C D6D D6R D6H D7R D7F D7G D7H D5 D8R D8K D8L D8H D9G D9R D10R D4E SR D7R II D7R XR
MARINE ENGINE
D349 D346 D348 3208
PIPELAYER
561C 572G 583K 571G
EXCAVATOR
225
VIBRATORY COMPACTOR
CB-614
WHEEL TRACTOR
650B 651B 660B 613 627 621 631D 631E 631C 641 651 641B 657 666B 666 623B 633C 621B 657B 621E 627B 637D 637E
HYDRAULIC CONTROL
163 183B 153
VEHICULAR ENGINE
D346 D348 D349
TRACK LOADER
983 977K
SOIL COMPACTOR
825C 825B 815
BACKHOE LOADER
426B 438C 426C 438D 438B 424D 436C 420D 432D 442D 430D 416C 428D 416D 428B 428C 416B
COLD PLANER
PR-1000 PR-1000C
WHEEL DOZER
834 824B 834G 834B 834K 824C 814 824
LANDFILL COMPACTOR
836 836H 836G 836K 826C
WHEEL LOADER
980 950B 950E 988 992 920 988B 988G 988H 988F 930 936 966D 966C 966E 950 950B/950E 936E 980B 992B 980C 992C 980G 994D 994H
ENGINE - MACHINE
3208 C4.4
CHALLENGER
70C 65 65C 65B 65D 75C 85C
GEN SET ENGINE
3145 3160 3150 3208
ARTICULATED TRUCK
D35HP D300B D400
RIPPER
8D 951 955 10 4
INDUSTRIAL ENGINE
D348 D349 D346 3160
QUARRY TRUCK
775B 771D 771C
WHEEL SCRAPER
627 666B 621E 623F 623E 637E 637B 637D 666 639D 627B 657 651
TRUCK
789 793F 69D 773D 773B 793F OEM 775D 789D 777G 777F 769 773 777 769B 769D 769C
TRACTOR
776 768C 772B
GAS ENGINE
G333C G398 G399 G379A G342C G3306 G353D G379
BULLDOZER
7SU 7S LGP 8S 834U 834S 10C 6A 6S 10S 7S 10U 8A
TRACK-TYPE LOADER
977K
